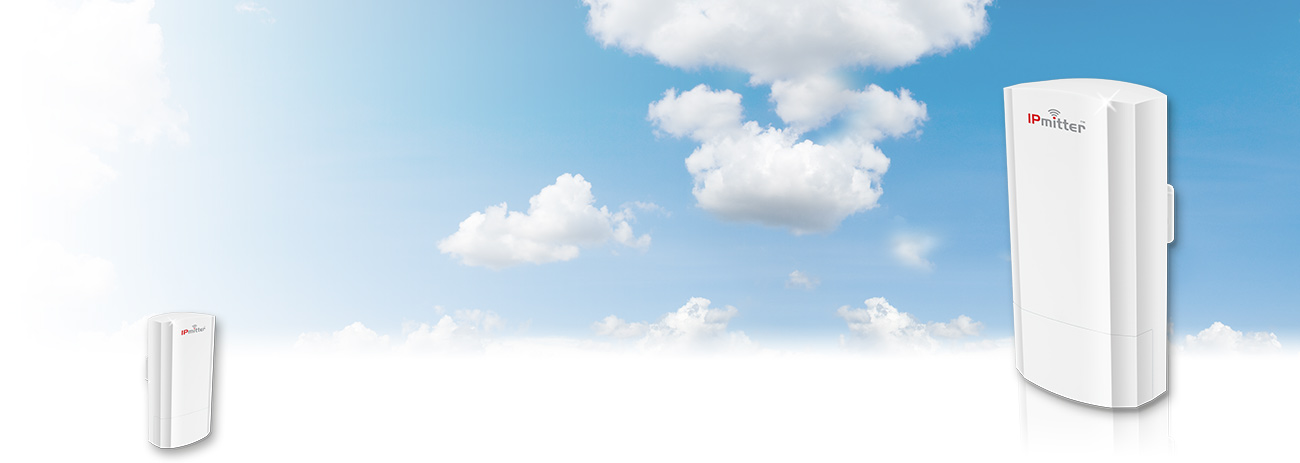

Slide 1

IPMIT204

This New 48V PoE budget IPmitter model has a data transfer rate of 300Mbs using the 2.4 GHz frequency and is aimed at smaller cost-conscious installations.

Slide 2

IPMIT304

This New 48V PoE IPMIT300 Standard model has a faster data transfer rate of 450Mbs and uses the less crowded 5.8 GHz frequency so is less likely to be fighting for airspace in locations with a lot of Wi-Fi equipment. Its faster data transfer rate means it can link bigger IP CCTV systems together more effectively than the budget one.

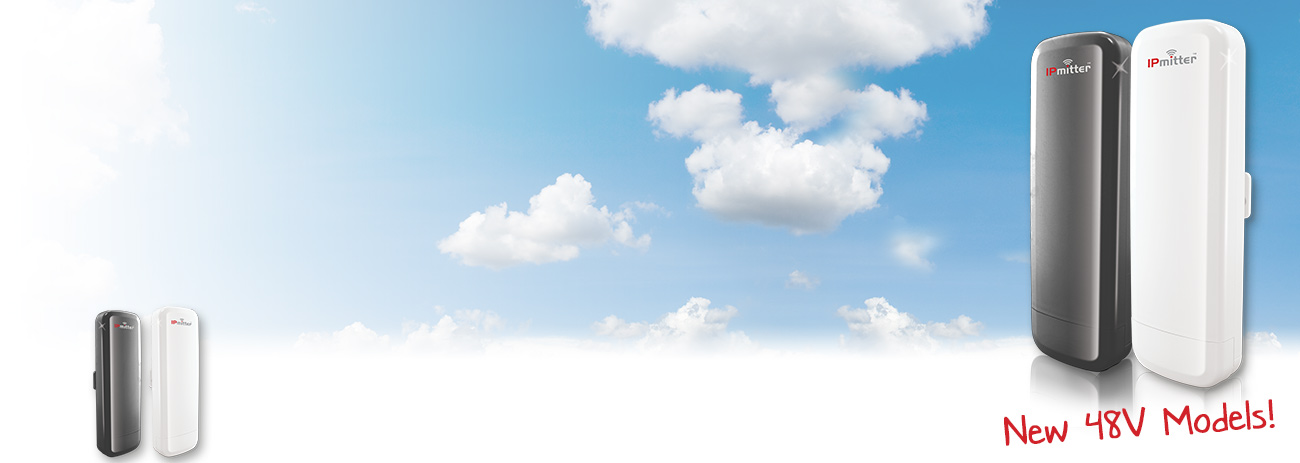

Slide 3
IPMIT400

The IPMIT400 Pro model IPmitter is a top of the range IP bridge and boasts an ultra-fast 900Mbs data transfer rate, the uncrowded 5.8Ghz band and also a 48V PoE connection for easy and rapid deployment in PoE systems.

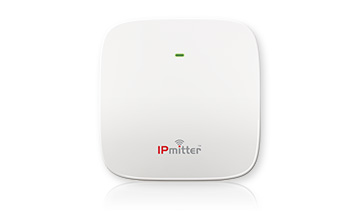

IPMIT100 : Dual Band Access Point
IPMIT100 : Dual Band Access Point

SKU : IPMIT100

The IPmitter ceiling and wall access point (IPMIT100) boasts dual band technology and can simultaneously connect multiple devices to your LAN. Offering a bandwidth of 750Mbps, this is a great access point for streaming media and video files or linking CCTV equipment to a network.

  • Frequency = 2.4GHz & 5.8GHz
  • Bandwidth = 750mbps
  • LAN Ports = 10/100Mbps
  • Power = 48v PoE or 12v DC
  • Mounting = Wall or Ceiling
  • Dimensions = 185 x 185 x 30mm

This product can operate in three modes -

Access Point Mode

The traditional mode that everybody is familiar with providing access to WiFi enabled devices such as mobile phones or tablets complete with DHCP pass through from your existing server or router.  The IPMIT100 should be connected to you existing router via a network cable.


Repeater Mode

Bridginng a gap wirelessly, the IPMIT100 extends the physical LAN to cabled devices whilst still providing simultaneous wireless access.  In this mode the IPMIT100 connects wirelessly to your router.


WDS Mode

In this mode, IPMIT100's connect to one another wirelessly via WDS extending LAN connectivity.


YouTube Product Video  Buy Now

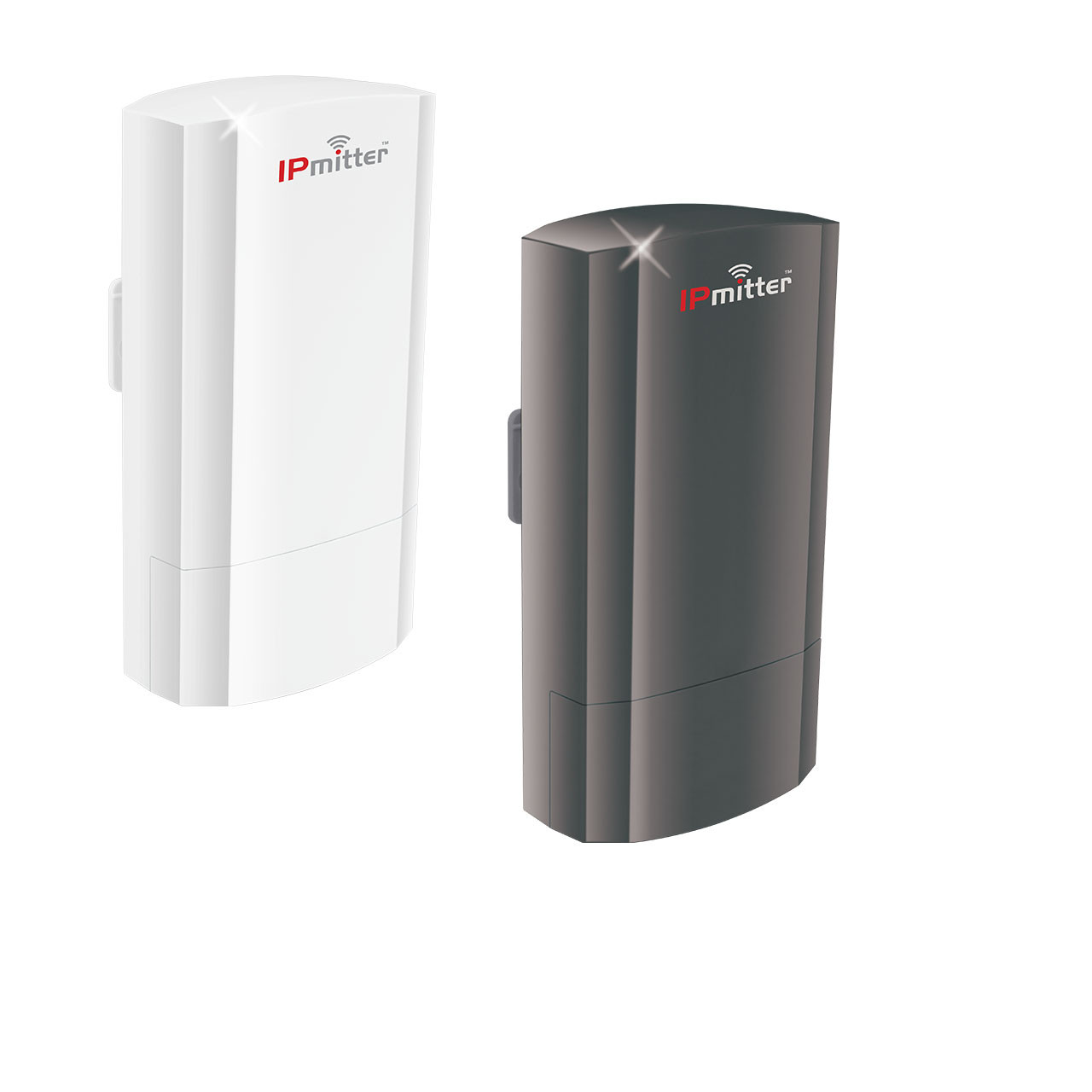

IPMIT204 : Entry Level IPMitter
IPMIT204 : Entry Level IPMitter

SKU : IPMIT204

Link Remote Buildings to Your Network Without Cables.

  • Easy Setup / Pairing Procedure
  • Modes = Bridge & Access
  • Frequency = 2.4GHz Only
  • Bandwidth = 300Mbps
  • LAN Ports = 10/100Mbps
  • Power = 48V PoE or 12v DC
  • Dimensions = 165 x 88 x 56mm

    These entry level IPmitters have a data transfer rate of 300Mbs using the 2.4Ghz band so are ideal for cost conscious installations.
    They are available in both black and white.
    Sold individually or as a ready paired "pair".

SKUs :

  • IPMIT204B = 1 x Black
  • IPMIT204W = 1 x White

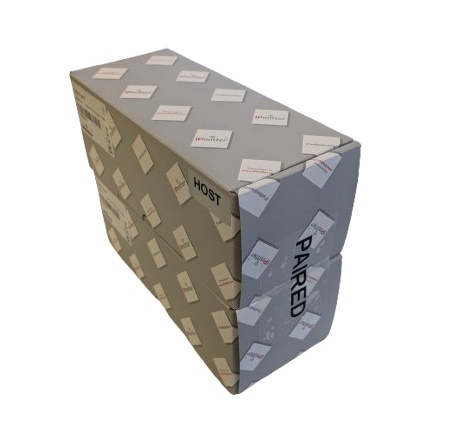

  • IPMIT254B = 2 x Black, Ready Paired
  • IPMIT254W = 2 x White, Ready Paired

YouTube Product Video   Buy Now

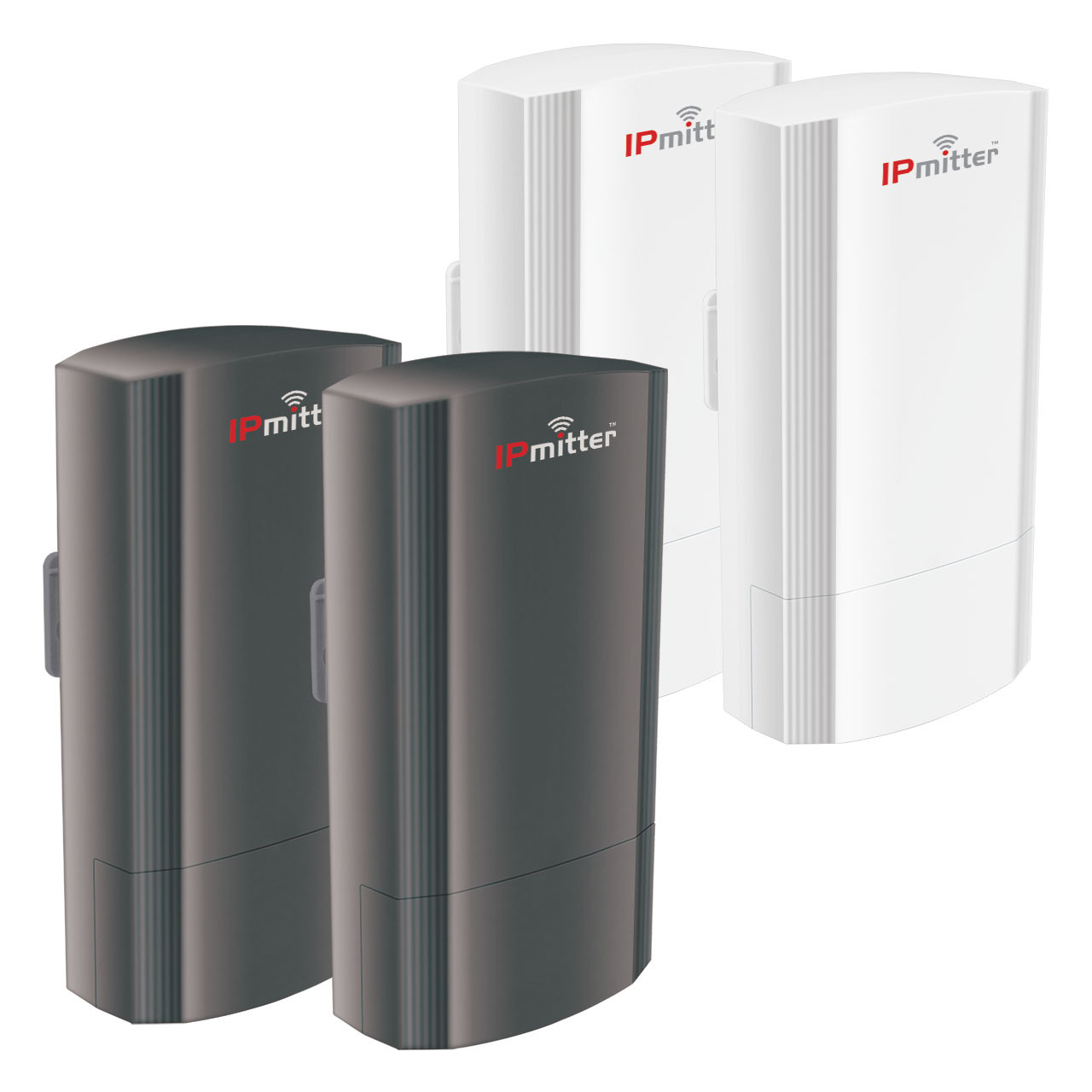

IPMIT304 : Mid Range IPMitter
IPMIT304 : Mid Range IPMitter

SKU: IPMIT304

Link Remote Buildings to Your Network Without Cables.

  • 450Mbps Bandwidth (See Below)
  • 5.8GHz Wireless Only
  • 12v DC or 48V PoE
  • Bridge & Access Modes
  • Maximum Range = 700m (line of sight)
  • Typical Range = 350m
  • Dimensions = 165 x 88 x 56mm

These mid range IPmitters have been upgraded to 900Mbps (pre-Summer 2025 models were 450Mbps).

They are available in both black and white.

Sold individually or as a pre-configured pair.

SKUs :

  • IPMIT304B = 1 x Black
  • IPMIT304W = 1 x White
  • IPMIT354B = 2 x Black, Ready Paired
  • IPMIT354W = 2 x White, Ready Paired

YouTube Product Video  Buy Now


IPMIT430 / 460 : PRO Series IPMitter
IPMIT430 / 460 : PRO Series IPMitter

SKU: IPMIT430 / IPMIT460

Link Remote Buildings to Your Network Without Cables.

  • 900 Mbps Bandwidth
  • 5.8GHz Wireless
  • Dual 12v DC or 48V PoE
  • Bridge & Access Modes
  • Maximun Range (line of sight) = 2km
  • Typical Range = up to 1.2km
  • Dimensions = 260 x 88 x 56mm


These are the top of the range IPmitter bridges and boast an ultra fast 900Mbs data rate using the 5.8GHz band for a less crowded airspace footprint. The 1Gig LAN port also makes this model more suitable for multiple IP camera transmission

They are available in black or white individually or as a pre-configured pair.

SKUs :

  • IPMIT430B = 1 x Black
  • IPMIT430W = 1 x White
  • IPMIT460B = 2 x Black, Pre-Paired
  • IPMIT460W = 2 x White, Pre-Paired

YouTube Product Video  Buy Now

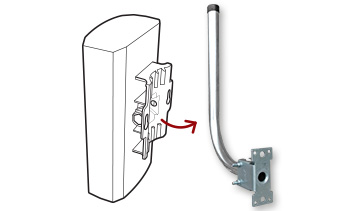

AER500 : Pole Mount Kit
AER500 : Pole Mount Kit

SKU: AER500

The IPmitter bridges have a built-in bracket shaped perfectly for pole mounting with teeth for extra grip. Just cable tie through the bracket and around a pole for an easy pole mount installation.

Dimensions (approx) :

  • Overall Length / Height = 430mm
  • Stand-off from Wall = 160mm (to the tube)
  • Tube Diameter = 25mm
  • Tube Length (Straight Portion) = 270mm

Buy Now

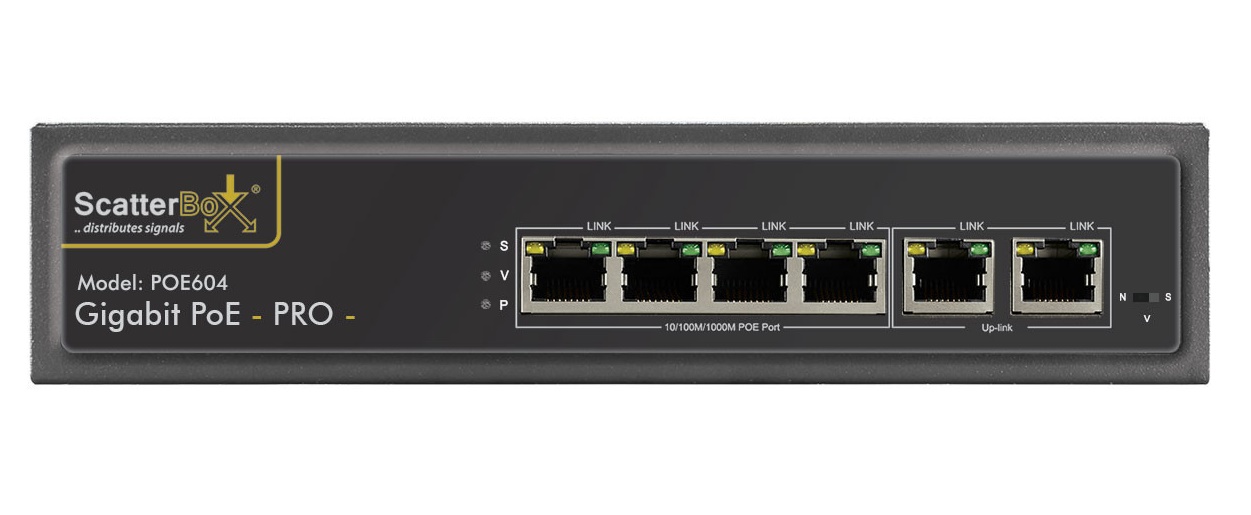

Scatterbox POE604 : 4 Port PoE Switch with Uplinks
Scatterbox POE604 : 4 Port PoE Switch with Uplinks

SKU : POE604

  • 4 x Port Gigabit Switch
  • 2 x Port Gigabit Uplinks
  • Port Isolation
  • PoE Total Power = 65W
  • PoE Maximum Power per Port = 30W
  • 240v AC Input
  • Dimensions 190 x 130 x 35mm

Scatterbox Gigabit PoE swithches are ideal for powering and connecting IP CCTV cameras to a network, they can power IPMitters and cameras simultaneously.

Buy Now

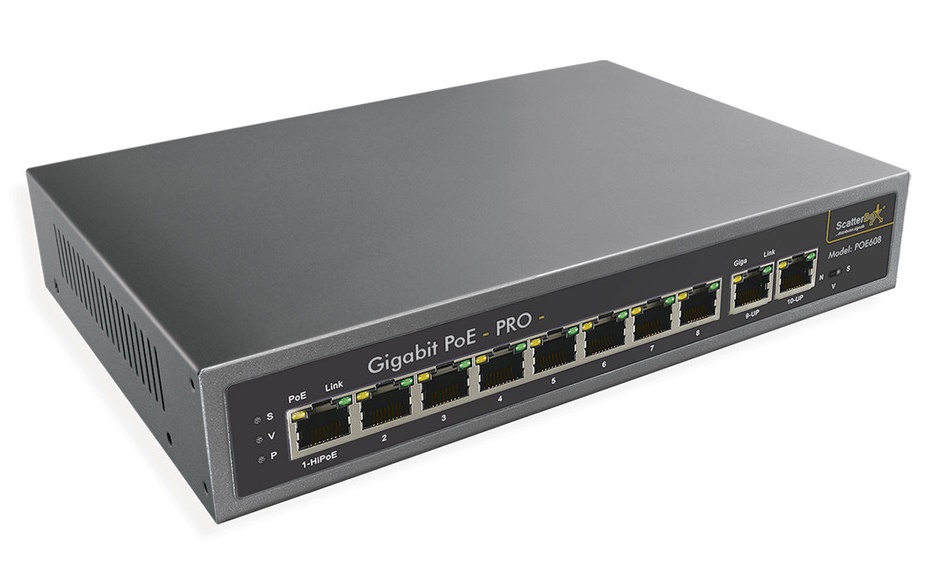

Scatterbox POE608 : 8 Port PoE Switch with Uplinks
Scatterbox POE608 : 8 Port PoE Switch with Uplinks

SKU : POE608

  • 8 Port Gigabit Switch
  • 2 Gigabit Uplinks
  • Port Isolation
  • PoE Total Power = 120W
  • PoE Maximum Power per Port = 30W
  • 240v AC Input
  • Dimensions 210 x 150 x 35mm

ScatterBox Gigabit PoE switches have been specifically tailored for powering and connecting IP CCTV cameras to a network, their high capacity means enables them to drive IPMitters and cameras simultaneously.

Buy Now

IP Mitter


A range of wireless IP bridges and Access Points for effortless transmission of IP CCTV...

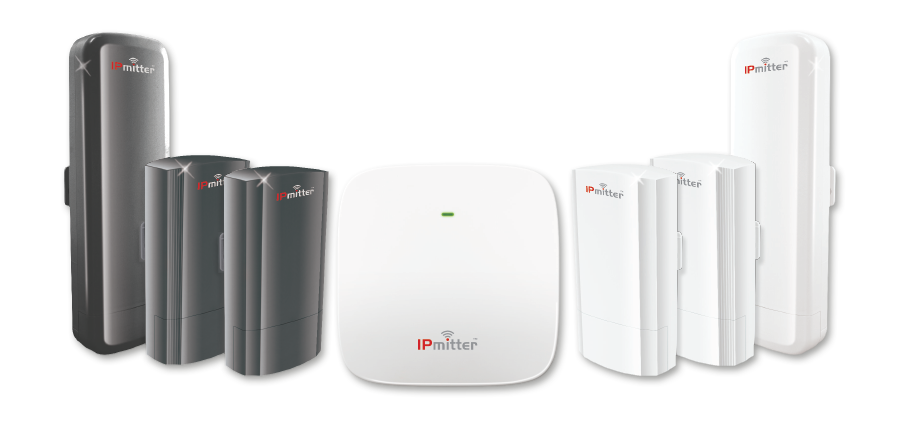

Product Range
